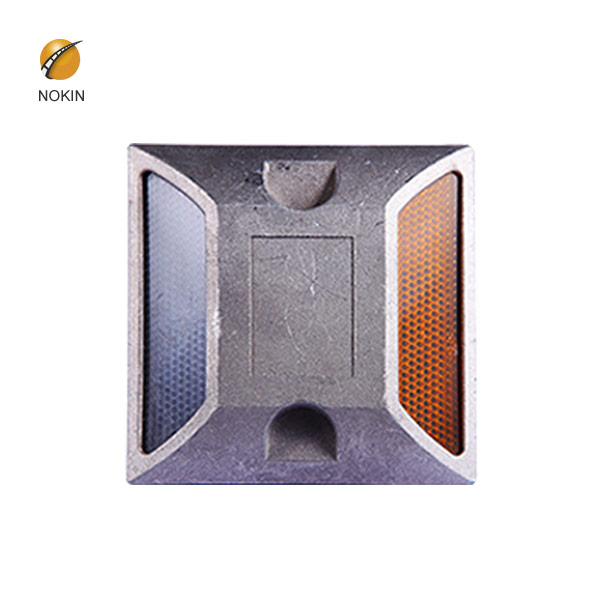

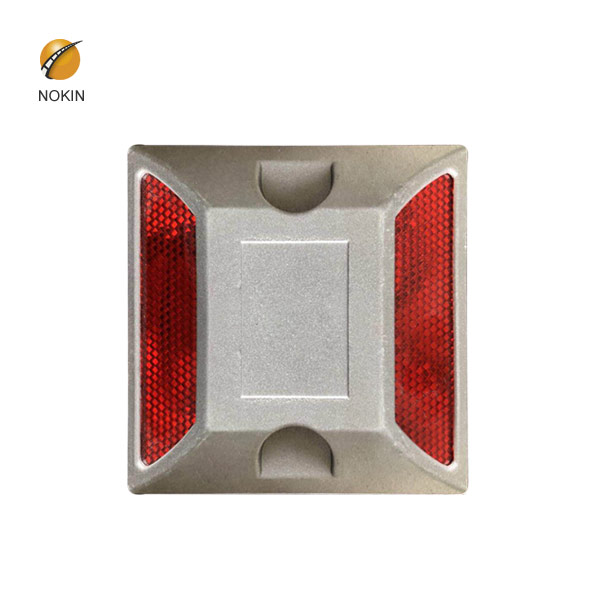

Aluminium NOKIN Reflective Cat Eyes NK-1004

Body material: Aluminium

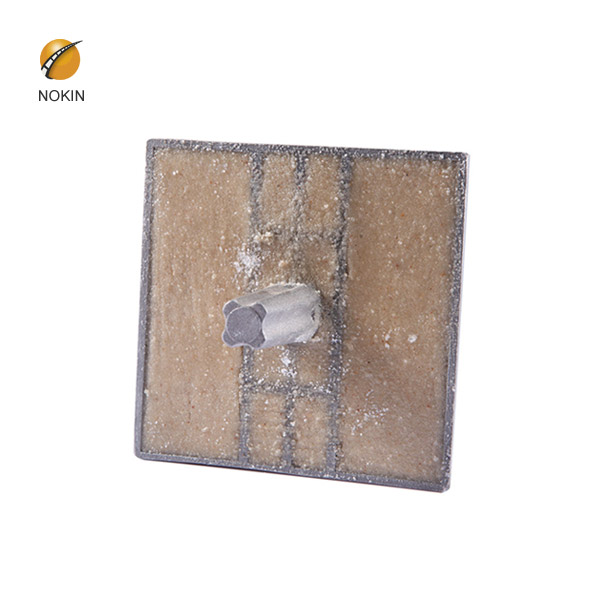

Filling: Epoxy+Quartz
Lens Material: PMMA
Colors: White, Red, Yellow, Green, Blue
Size: 100*100*20+50mm

Email: info@nk-roadstud.com

Call Center: +86-13602600950

Chat Now

Share us:

Features

Aluminium reflective cat eyes are one of raised pavement markers. Aluminium reflective cat eyes on motorway is used for dividing the road boundary,for safety,reducing the accidents,made from aluminium alloy attached with the reflective sheet made from the acrylic plastic sheet.This acrylic is a reflective prism glass style and available 1 or 2 sides on road stud. In addition,there will be thin layer of the coated glass in order to enhance the reflective index during night time.

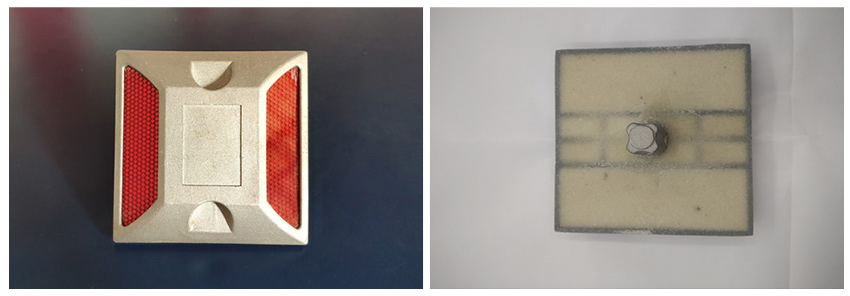

Aluminium NOKIN Reflective Cat Eyes

Reflective cat eye road studs, is used in the road pavement making to guide the vehicles driving on the right roadway and reduce the accidents to keep traffic safe. So, it is also called road pavement marker.

The reflective cat eyes can be divided into plastic reflective cat eyes, aluminum reflective cat eyes and glass reflective cat eyes by material. And the plastic type can be pvc reflective cat eyes and abs reflective cat eyes. The aluminum type can be 3M aluminum reflective cat eyes, solar aluminum cat eyes and aluminum reflective cat eyes with shank.

The specifications of Aluminium reflective cat eyes:

Model No.	NK-1004
Color	Red, Yellow, Green, Blue, White
Lens Material	PMMA
Body Material	Aluminium
Filling	Epoxy+ Quartz Sand
Size	10010020+50mm
Temperature	-40~60°C
Load capacity	5 T
Packing	50 pcs / ctn
Life span	>3 years
Certificates	ASTM & EN1463-1

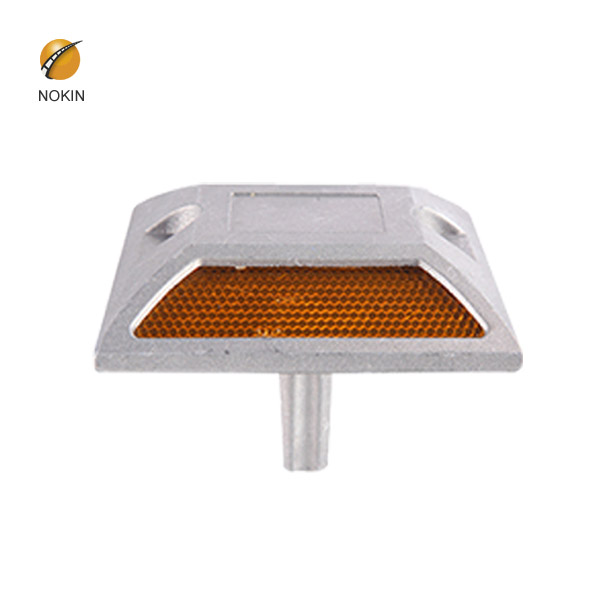

Amber-Reflective-Pavement-Markers-4

Whats the different color aluminium reflective cat eyes mean on the motorway?

Red studs- mark the left edge of the road.

White studs- mark the lanes or the middle of the road.

Amber studs- mark the central reservation of a dual carriageway or motorway.

Green studs- mark the edge of the main carriageway at lay-bys and slip roads

Green/yellow- studs indicate temporary adjustments to lane layouts, e.g. where road works are taking place.
